Description

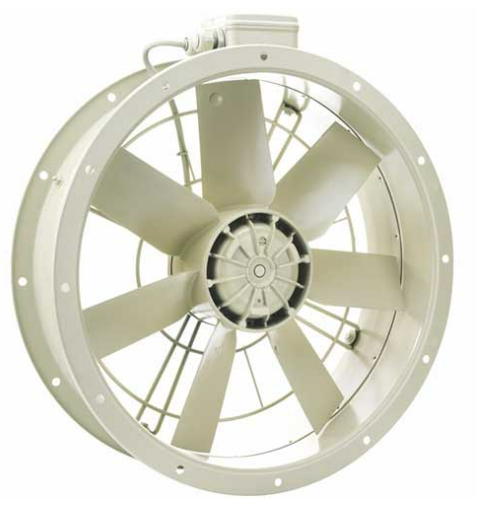

Vent Axia EuroSeries Short Cased Axial Fan 315mm Diameter – ESC31514

EuroSeries ESC Short Cased axial blade fans feature a single shot die cast aluminium blade & external rotor motor design

Diameter: 315mm
Motor Phase: 1
Poles: 4
r.p.m: 1300
IP Rating: IP54
Air Volume: 1500m3/h @ 50Pa

• External rotor motors
• Die cast aluminium impellers
• Fully speed controllable using 1.5 Amp speed controller
• Operating Temperatures from -40°C up to +70°C
• Motor Insulation Class F
• HOT SPOT Protection
• Reversible for supply or extract
• Tough epoxy paint finish
• Quality Assurance to BS EN ISO 9001:1994
• Performance tested to BS848 Part 1 1980

Download Data Sheet
